Error code LE (Locked Drive / Motor Error) is the single most common hardware failure code on LG Direct Drive washing machines. Unlike traditional washers that rely on drive belts and pulleys, LG Direct Drive machines bolt a multi-pole electromagnetic rotor directly to the central stainless tub drive shaft. When the drum fails to rotate smoothly or when the central microprocessor cannot determine the exact position of the rotor poles, the control board halts power to protect the inverter IGBTs and sounds the LE alarm chime.
Step 1: The 30-Second Direct Drive Logic Reset
If the error was triggered by an oversized load of towels or heavy bedding causing a momentary motor slip, perform this logic discharge before removing panels:
- Press the POWER button to turn the unit off.
- Disconnect the power cord from the electrical wall outlet.
- Press and hold the POWER button down for 5 seconds with the machine unplugged (discharges stored capacitor voltage).
- Press and hold the START / PAUSE button down for 5 seconds.
- Plug the washer back into the wall outlet.
- Power on the washer, select the Spin Only (or Rinse & Spin) cycle, and press START with the tub empty.
If the drum smoothly ramps up to high spin speed, the code was caused by a transient imbalance. If the drum jerks slightly, clicks, and throws LE within 3 seconds, proceed to hardware testing.
Step 2: Multimeter Test on the LG Rotor Position Sensor (Hall Sensor)
The Hall sensor (RPS – Rotor Position Sensor) is a small white plastic component clipped to the bottom of the stationary stator coils. It contains two Hall-effect integrated circuits that feed magnetic timing pulses back to the main PCB.
Always unplug electrical power before removing the rear panel. The outer rotor drum contains powerful permanent rare-earth magnets; handle with care to avoid pinching fingers against the stator core.
- Remove the rear metal cabinet panel screws and remove the access panel.
- Use a 17mm socket wrench to remove the center rotor retaining bolt (loctite-secured).
- Pull the outer metal rotor drum straight back off the splined shaft.

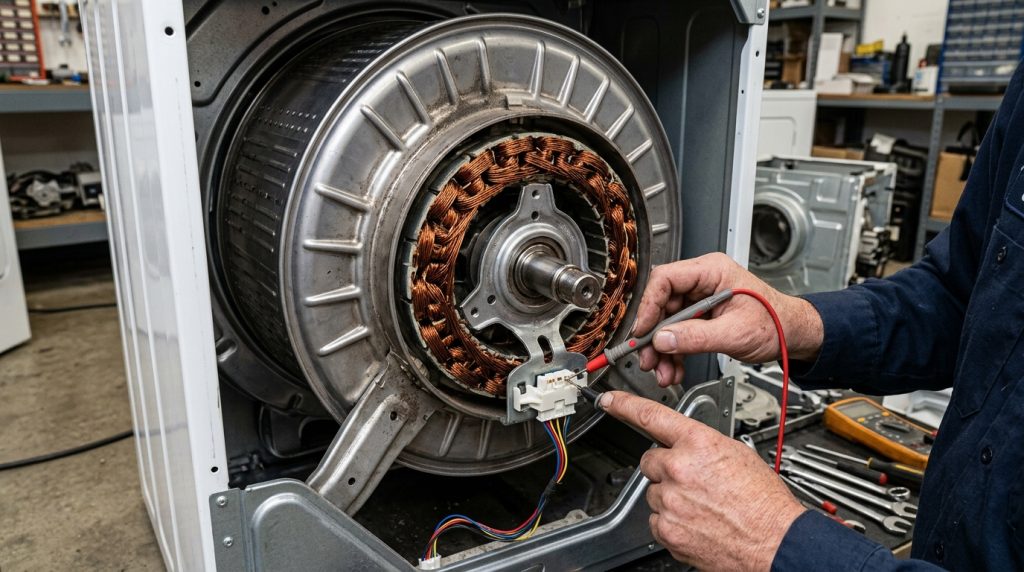

- Locate the white plastic Hall sensor clipped onto the lower frame of the copper stator coil pack.
- Disconnect the 5-pin wire harness connector and set your digital multimeter to Resistance (kΩ).
| Sensor Connector Terminals | Expected OEM Resistance | Diagnostic Interpretation |
|---|---|---|
| Pin 1 (Supply VCC) to Pin 4 (Ground GND) | 8.5 kΩ to 15.5 kΩ | PASS: Internal power rail intact. |
| Pin 2 (Hall Output A) to Pin 4 (Ground GND) | 8.5 kΩ to 15.5 kΩ | PASS: Output A sensor element functional. |
| Pin 3 (Hall Output B) to Pin 4 (Ground GND) | 8.5 kΩ to 15.5 kΩ | PASS: Output B sensor element functional. |
| Any Pin Pair Reading 0.0 Ω or Infinite (O.L.) | 0 Ω or Infinite | FAIL: Hall element is blown or internal resistor fractured. Replace Hall Sensor #6501KW2002A. |
| Stator Coil Resistance (U-V, V-W, W-U) | 5.0 Ω to 15.0 Ω (Identical on all 3 pairs) | PASS: Stator coil windings are balanced and healthy. |
OEM Replacement Part Information
LG Direct Drive Rotor Position Sensor (Hall Effect Switch)
OEM Part Number: 6501KW2002A (Replaces 6501KW2002B, 1268273, AP4439405, PS3529180)
Compatibility: Fits virtually all LG Direct Drive front-load and top-load washers manufactured from 2005 to present, including WM2050, WM2277, WM2487, WM3001, WM3400, WM3900, WT1101, WT7200.
Cost & Installation: Inexpensive ($15–$25 OEM part), installs in 30 minutes with a 10mm and 17mm socket.
Connected Diagnostic Procedures & Next Steps
Direct Drive motor timing errors require confirming zero mechanical resistance and proper drainage. Cross-reference these connected solutions:
Frequently Asked Questions
Why did my LG washer work fine for 1 minute before throwing LE?
During initial sensing, the drum rotates at very low RPM where signal degradation may not immediately trigger a fault. When the control transitions to agitation or high-speed ramp-up, missing Hall pulses cause timing misfires, triggering immediate LE shutdown.
Can a loose rotor bolt cause error LE?
Yes. If the 17mm center rotor bolt backs out slightly, the rotor magnets will wobble and increase the air gap between the magnets and the Hall sensor, causing intermittent pulse loss. Always torque the center bolt securely with blue threadlocker.
